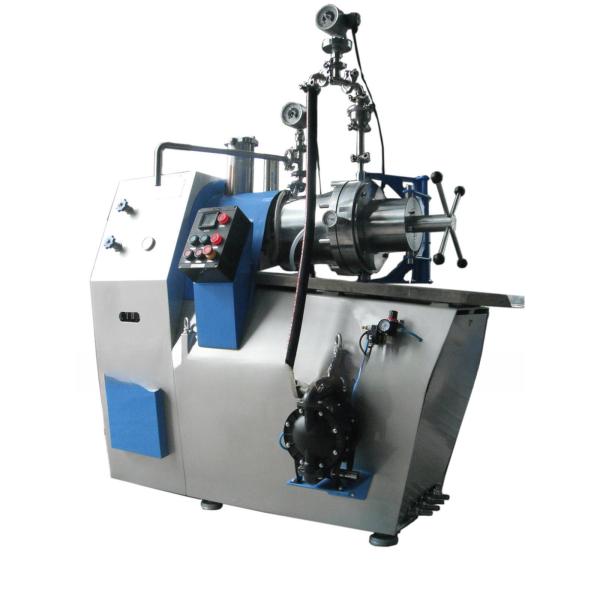

Chemical Pin Type Bead Mill Disc Grinder Conical Horizontal Bead Mill

  • 1
  • 2

Model NO. : ZM5KB

Object : Milling Cutter

Application : Chemical

Transport Package : Fumigated Wooden Box

Specification : CE, ISO, SGS

Trademark : DEGOLD

Origin : Chongqing, China.

HS Code : 8474202000

Supply Ability : 80sets/Year

Mill Type : Pin Type Inside Grinding Chamber

Suitable Grinding Medium : Zirconium/Zirconia/Zircon Beads

Function : Wet Grinding for Particle Size Reduce

Applicable Industry : Paint, Ink, Pigment etc.

Usage : High Viscosity

Type : Disc Grinder

Customization : Available | Customized Request

Contact Now

Pin Type Inside Grinding Chamber Disc Grinder Conical Horizontal Bead Mill-Ex ZM5KBChemical Pin Type Bead Mill Disc Grinder Conical Horizontal Bead Mill
ZM5KB conical pin type bead mill(Explosion-proof) is totally explosion-proof type, which is suitable for solvent based formulations.

ZM5KB conical pin type bead mill( (Explosion-proof)is suitable for superfine grinding and dispersion of medium and high-viscosity products.

APPLICABILITY:
1. Offset ink
2. Screen printing ink
3. Concentration ink
4. Printing oil for cigarette packet
5. Top grade
6. Distcemp

TRAITS:
1. High precision space separating unit capable of self cleaning. Suitable for φ 0.4mm or bigger grinding medium. Separating space can be adjusted by selecting different rotor separating ring.
2. Conical grinding cavity, slit mixer, small working zone considerably lower down cross pollution.
3. Forced cooling of rotor, stator and separating ring.
4. High precision bearing and double-mechanical seal.
5. Mechanically-powered pressure unit to adjust effective bead load and product quality.
6. High abrasion-resistance materials for grinding cavity.
7. Compeletely explosion proof type.
Universal Horizontal Large-Volume Conical Slit Bead Mill is widely used in the dispersion and superfine grinding of medium and high-viscosity products for 50kg/h or bigger batch production.

Standard Deploy:
1. Rotor and stator forced cooling
2. Separation ring cooling
3. Precision bearing and double-mechanical seal
4. High precision space separation
5. Product pressure/temperature control
6. Revolve-open pressure unit
7. Speed-adjustable feed pump
8. Explosion-proof design
Chemical Pin Type Bead Mill Disc Grinder Conical Horizontal Bead Mill
Any questions and comments are great appreciated here all way.
Main technical parameters:
Project/Model Unit ZM5KB
Effective grinding cavity volume L 5
Driving motor power KW 22,30
Cooling water consumption ( 0.3Mpa) m 3 /h 1.8
Controlling air pressure Mpa 0.6-1
Dia. of grinding medium mm 0.4-2.5
Gross weight kg 1000
Overall size(L×W×H) mm 1700×1300×1700
